John Burkhert

Lessons learned the hard way.

I still remember a day back in the late ’80s when an electrical engineer invited me into his office and showed me a CAD PCB layout on his monitor. How cool would it be to do that? Well, now I know. Pretty cool, but frustrating at times as well. Placing and routing are the meat and potatoes of PCB design. (If you don’t like “meat,” think of your own metaphor.) There are other things to do, but this is what holds it all together.

The basic framework is built around two disciplines: mechanical and electrical engineering. The two main features are the components and, of course, the board. An intelligent set of library parts is essential to getting the placement off to a good start. Over the years, schematic capture has shifted from the PCB designer’s hands to those of the EE.

To continue reading, please log in or register using the link in the upper right corner of the page.

{!guest}

The schematic and component libraries are often outsourced or created by an in-house specialist. The goal in the larger outfits is to allow the PCB designer to focus on placement and routing. Startups will put more hats on your head. Either way, our time is a precious commodity not to be wasted.

When and where to begin. We start with a board outline and a netlist, both of which should be considered preliminary. Waiting for all the stars to align before beginning the layout is called a waterfall schedule. It’s unrealistic to expect that to happen on a complex layout. Expect some churn along the way. Now, I just mentioned our time is precious, but it is worth it to get in early because it leads to a shorter overall schedule. That is the goal; time-to-market is one of the biggest factors in success.

When the goalposts are moved, it can seem like you did a lot of work for nothing. That can be one of the main frustrations. To keep things in perspective, it helps to consider all the early placement work as a placement study. It’s the same sentiment for routing. You’re finding the pain points and sorting out the power domains. A lot of that work will stick, although the neighborhoods may shift around on the map.

7-designers-notebook-figure-1

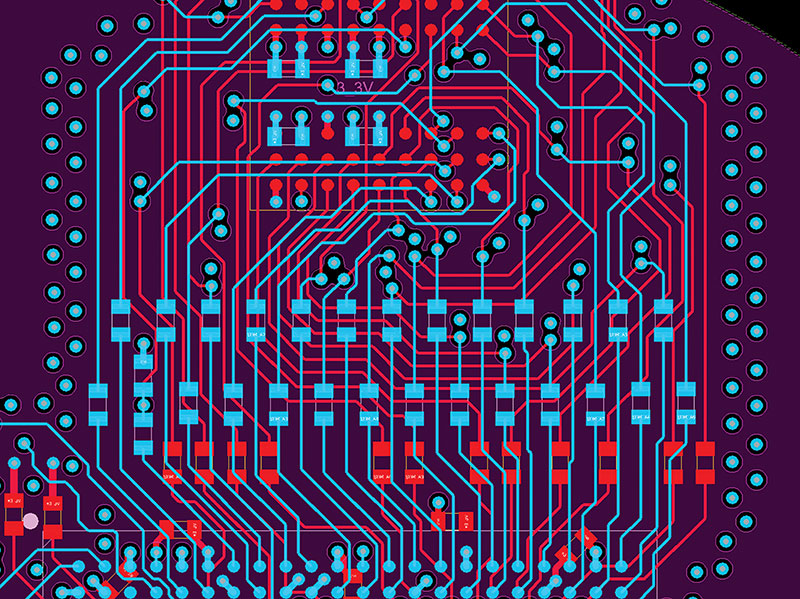

Figure 1. Placement of the series resistors was driven by the routing of this memory bus that only used the two outer layers. Note the ground via near every signal via had to be factored in.

While you are floor-planning around the critical nets, it is wise to fan-out the chips but leave the interconnects from chip-to-chip for later. That makes moving a cluster much easier, while retaining the essential geometry for each device. How do you get the “essential geometry?” The first method is design reuse; don’t reinvent the wheel if you can copy a working circuit.

Leverage the chip vendor. Next are the data sheets. Your chip vendors want you to succeed so you keep buying their product. They are always eager to show the best way to implement their chips. Expect them to be conservative with the reference designs, and do your best to capture the essence of the data while fitting it into your allocated space. Following the data sheet, if not verbatim then close to it, gives you a backstop when you defend your decisions at the design review. (For more on that, see the May 2020 issue.)

You’ll wind up making a lot of decisions with no one looking over your shoulder. Share your work with the cognizant engineer(s) but don’t expect them to be able to see the whole picture while you’re still figuring it out. You’ll build trust by executing the design, and they’ll give you even more runway to make mistakes. At Microsoft, one of the slogans is “fail fast.” Get those mistakes out of the way and make room for improvement. If the mechanical outline shrank while the electrical side grew, consider that an improvement. Everyone wants to buy more for less. You want everyone to be a buyer, right?

Dealing with uncertainty. Starting at the gnarliest device on the PCB, work your way out, leaving a measured amount of slack here and there for both components and routing. I try not to slam everything together at first, even if the final iteration will end up that way. There are too many unknowns; call them unknown unknowns when you don’t even know what you don’t know. Risk management isn’t easy but necessary if you don’t want to design yourself into a corner.

The physical designer can and will need extra clearance for a gusset or heat pipe. The electrical engineer means well when they add another filter cap. Who knew that one of the components would become obsolete or come with a 40-week lead-time? The fabricator will ask you to upsize the capture pads or add a little more space between the differential pairs. People you didn’t even know were involved could show up at the design review with an agenda unknown to anyone but themselves. It happens.

Everyone in the room is under the same schedule pressure with a lot of things on their plate. I’ve said it before: consider any change an improvement, never a mistake. Show that attitude and they’ll come back for more. There is no such thing as idle time once you’re on a design. Future-proof the layout by making the most of the available area. Un-crowd the components and traces or learn to do so the hard way.

7-designers-notebook-figure-2

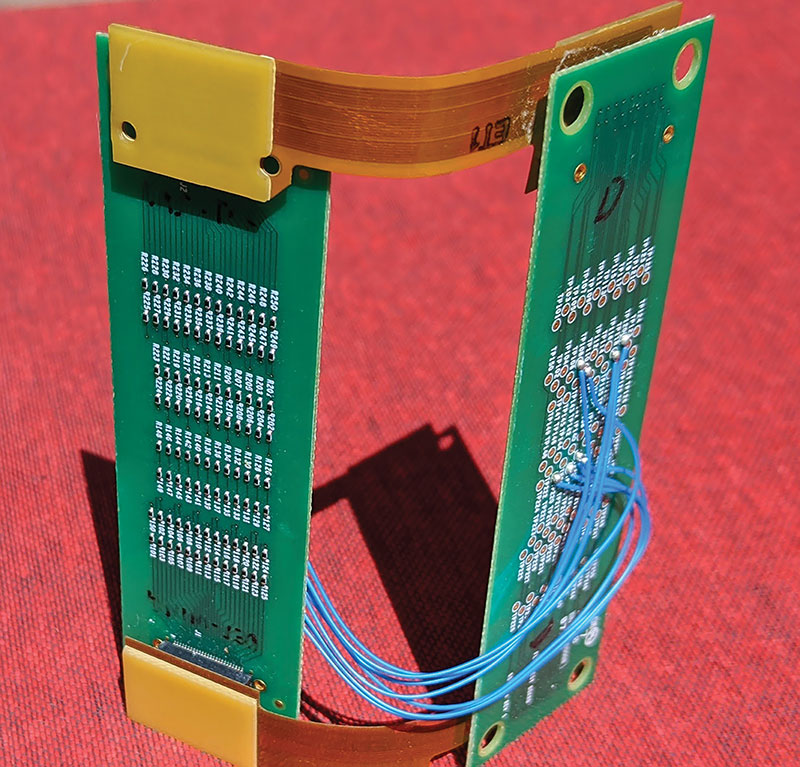

Figure 2. Ironic that a board supposed to cure a mis-wired flex needed eight blue wires and an X-acto knife in the build kit. We did it all in one day, but ....

7-designers-notebook-figure-3

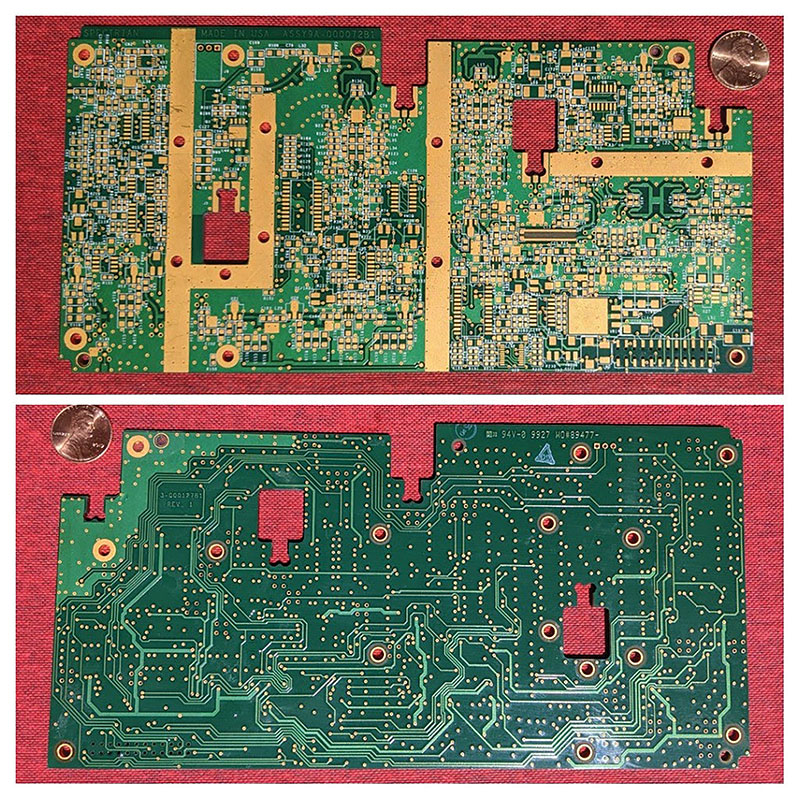

Figure 3. Populating only one side of the board and sticking to surface mount components helps the assembly team.

PCB social distancing. Using local vendors requires a different approach than I’d use with overseas fabricators. My snowman pair of vias – a microvia and a core-via – had to be turned into more of a dumbbell than a snowman because I violated the same-net via-to-via rule from the vendor. I had no idea. What worked at Qualcomm way back about 10 years (!) ago is no longer good enough. Every core via is met by two microvias. Hundreds of them had to be adjusted to add 76µm of “social distance.”

That was a rough day and a little more. I was fortunate to have completed the routing study ahead of time. The point is  start with strong design rules and then back off a little if you can. It was the cumulative space that I left everywhere that made the extra spacing possible without basically starting over. Sending early data to the stakeholders has a lot of value. Had I not taken the time to generate a DfM document package earlier in the project timeline, the “last minute” would have a long day or two. I’m writing about this “improvement” so you don’t have one of those days.

John Burkhert Jr. is a career PCB designer experienced in military, telecom, consumer hardware and, lately, the automotive industry. Originally, he was an RF specialist but is compelled to flip the bit now and then to fill the need for high-speed digital design. He enjoys playing bass and racing bikes when he's not writing about or performing PCB layout. His column is produced by Cadence Design Systems and runs monthly.
