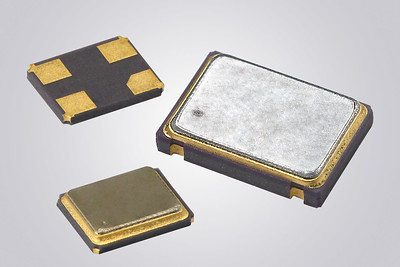

Vishay Intertechnology has has expanded its frequency control line with new surface mount crystals and oscillators designed to deliver smaller packages, wider value ranges and improved performance.

New additions include six new series of crystals and three new series of oscillators. New sizes include crystals as compact as 1.6mm x 1.2mm and oscillators starting at 2mm x 1.6mm. Are said to reduce board space requirements and lower overall costs by up to 40% compared to the larger 5mm by 7mm packages currently offered. Crystals cover a frequency range of 12MHz to 60MHz — plus a tuning fork crystal that operates at a 32.768kHz real-time clock frequency — with frequency tolerances of ±20ppm or better at 25°C. Oscillators span a frequency range from 1MHz to 125MHz.
