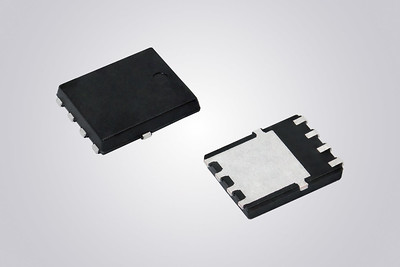

Vishay Intertechnology's General Semiconductor R3T2FPHM3 combines a 3A, 600V standard rectifier with a 200W Transzorb TVS in the same FlatPAK 5 x 6 package.

Features a wide temperature range from -55°C to +175°C and is suitable for high-reliability automotive applications, including secondary protection for sensor units, distributed airbag modules, and low power DC/DC converters in power distribution systems. Saves PCB space, simplifies layouts, and lowers overall costs by combining two different technologies in a single package. When paired in series with a standard TVS, offers designers a complete >24V solution with a low clamping ratio. Features a low forward voltage drop of 0.86V while offering a breakdown voltage of 27V. Provides ESD capability in compliance with IEC 61000-4-2, air discharge and contact mode; offers a MSL moisture sensitivity level of 1, per J-STD-020, LF maximum peak of 260°C; and molding compound features a UL 94 V-0 flammability rating. RoHS-compliant and halogen-free, and is available in an AEC-Q101 qualified version.

Vishay Intertechnology
