Molex Offers Flex-to-Board RF mmWave Connector 5G25

Published: 28 September 2021

Flex-to-Board RF mmWave Connector 5G25 meets 5G mmWave applications requiring signal integrity at higher frequencies up to 25GHz.

Micro connector enables optimization of high-speed 5G components, while alleviating space constraints. Supports high-speed data transmission; offers protection from harsh environmental conditions. Features signal pitch of 0.35mm, mated body height of 0.6mm, body width of 2.5mm and length of 3.6mm. Can combine RF and non-RF signals. Features electromagnetic interference shielding, encompassing RF terminal and full connector shielding. By employing center shield-in contact with receptacle and plug, each row can be isolated to boost overall signal integrity stability. Facilitates assembly with excellent click feeling to prevent mismating. Ultra-compact connectors feature robust peel force.

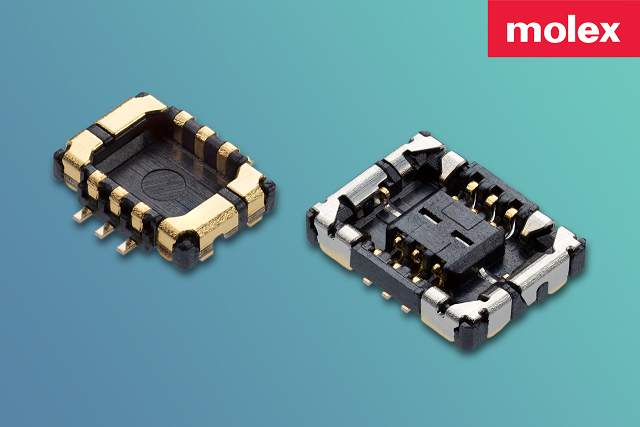

Molex 5G Series Connector

Molex
molex.com
