InCAM Pro 2.1 CAM software offers intelligent flex tooling hole placement in which all flex tooling holes on the board are visible at a glance.

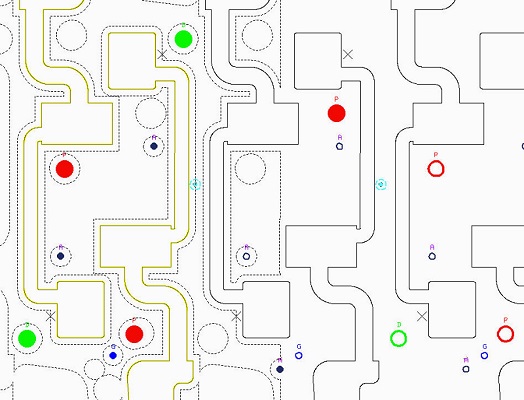

Adds and manipulates flex tooling holes on a new graphic mask layer that maps all flex tooling holes on the printed circuit board. The mask provides visibility to other layers when working with flex tooling holes. Automatically synchronizes tooling holes with relevant layers, saving hours of work, and ensuring accuracy. Tooling holes are now color-coded per set. Set repetitions are shown in the color of their set but in outline mode, to distinguish the main set from its repetition. Tooling Hole Editor shows where tooling holes can be legally placed and prevents illegal placement, eliminating spacing problems. Updated Netlist Compare Results popup is reduced in size to free up screen space. Buttons and controls have moved to the top. Columns are narrower. Category names have tooltips. Only categories with results are shown.

Frontline PCB

frontline-pcb.com
