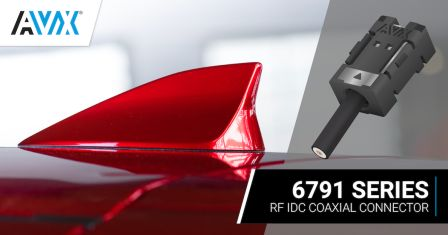

00-6791 series RF wire-to-board coaxial IDC connectors are for industrial and automotive applications.

Comprise two single-piece connectors suited to different types of coaxial cable, featuring one-touch coaxial cable termination mechanism. Deliver high-quality RF performance. Measure down to 10mm x 6.6mm x 3.9mm when seated. Feature mechanical bracing for high-strength performance capabilities. Compatible with automated SMT pick-and-place processing and automated Pb-free reflow soldering. Also compatible with Bluetooth, GPS, GSM, and WLAN protocols and are rated for 0.5A (depending on the cable), 125VAC operation, 70N of horizontal pull-force, 20N of vertical pull-force, and frequencies up to 6GHz. Termination process requires three steps: strip outer jacket and braid shield; insert cable with inner jacket still intact; manually or automatically depress insulator cap. Feature phosphor bronze signal and braid contacts, glass-filled Nylon 46 insulators, Pb-free tin-over-nickel-plated terminations, and a stainless steel support plate. Are RoHS-compliant, supplied in tape and reel packaging. Operating temp. extend from -40°C to 105°C, with heat resistance during reflow extending to 260°.
