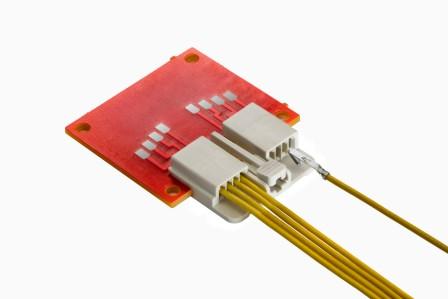

Molex Introduces EdgeLock Wire-to-Signal-Card Connector

Published: 02 July 2018

EdgeLock wire-to-signal-card connector provides direct, secure mating to PCB Edge-Card.

Replaces typical soldered header. Eliminates need for a mating header assembly. Polarization rib on the 2.00mm-pitch edge lock connector housing prevents mismating to printed circuit boards. Also supports 3.0A max current. Dual cantilever crimp terminal design with embossed contact points offers greater normal force for long-term electrical reliability. Features a latch that permits quickly removable from PCB. PA46 resign material is low halogen, ideal for high-temperature environments and applications.

Molex

molex.com/link/edgelock.html

Molex EdgeLock web
