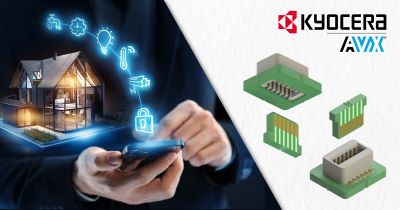

Kyocera AVX's 9159-800 series dual-entry card-edge connectors are said to be the industry’s first dual-entry card-edge connectors and the lowest-profile card-edge connectors in the company's portfolio.

Feature a novel, compact form factor equipped with four to 20 beryllium copper compression contacts arranged in two rows with a tight 1mm pitch. Have gold-plated compression contacts that enable solderless installation and exhibit up to 2A of current-carrying capacity per contact. Also exhibit low contact resistance and deliver high-reliability electrical and mechanical performance ideally suited for use in harsh environments. Support both top- and bottom-entry mating configurations and have recessed through-board mounting to deliver a 3.5mm profile. Ideal applications are said to be in the automotive, transportation, industrial manufacturing, consumer electronics and white goods industries. Have white, glass-filled, high-temperature, flame retardant (UL94 V-0) and halogen-free insulators and are rated for up to 150VACRMS or the DC equivalent and operating temperatures extending from -40°C to +125°C. Can mate with 1.6mm-thick PCBs with gold-plated pads and are also UL and RoHS compliant.

Kyocera AVX

kyocera-avx.com
