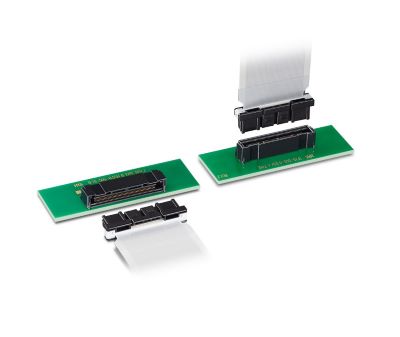

Hirose's TF70 two-piece FPC/FFC-to-board connector is designed for harsh environment applications including automotive.

Features a center lock design that allows for one-handed insertion and removal and a locking strength of more than 40N. Includes guide key to prevent mis-insertion and a clear tactile click to indicate complete and proper mating. Has a narrow pitch of 0.5mm and a compact design that reduces the size and weight of end products. Also features an operating temperature of -40°C to +105°C, and is available in right angle and straight angle connection methods for flexible board design.
