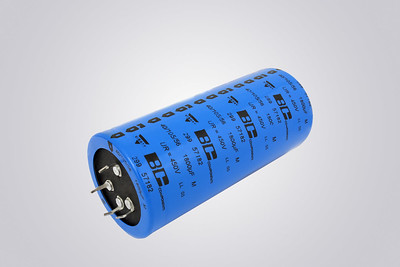

Vishay has expanded its 299 PHL-4TSI snap-in, four-terminal aluminum electrolytic capacitors with new 350V, 500V, 550V and 600V rated capacitors.

Feature a cylindrical aluminum case with pressure relief, insulated with a blue sleeve, to offer high ripple current ratings from 1.9A to 7.6A. Have a high 105°C temperature capability and long useful life of >5000 hr. Can replace banks of large screw terminal capacitors connected by a bus-bar with smaller parts connected by a PCB, lowering construction costs and enabling soldering processing instead of manual mounting. Also limit the number of components required with larger can sizes than standard two-terminal snap-in capacitors — ranging from 35mm x 50mm to 45mm x 100mm.

Vishay Intertechnology

vishay.com
