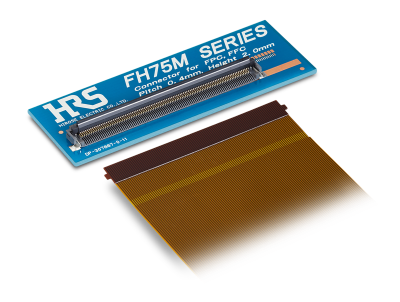

Hirose's FH75M series flexible printed circuit/flat flexible connector supports MIPI D-PHY (1.5GBPS) and eDP1.3 (5.4Gbps) specifications in a miniature footprint.

Features a 0.4mm pitch and 2mm height and uses a two-point contact design with two independent springs that provide a wiping action to prevent contact failure from dust, dirt and other contaminants. Has an operating temperature of up to 125°C to satisfy the extensive heat demands found in automotive applications. Also meets additional automotive requirements including resistance to shock and vibration, hydrogen and sulfur gasses, humidity and corrosion. Uses a flip lock with FPC tab and housing side catches that offer a high retention force of 51.4N and delivers easy FPC insertion while emitting a clear tactile click to confirm complete locking. Has a user-friendly design, which includes wide tapers that provide smooth FPC insertion, and is available in a 100-position version that is halogen-free and RoHS compliant.

Hirose Electric

hirose.com
