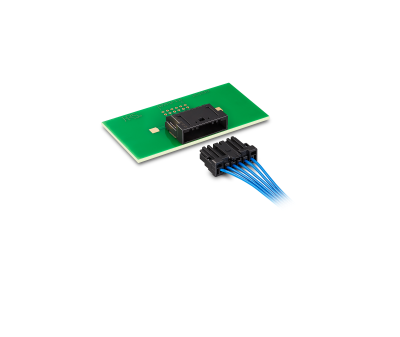

Hirose's ZG05HV Series wire-to-board connector supports applications up to 125°C, making it ideal for automotive applications including battery, converter, ECU, inverter and on-board charging connectivity.

Features a specialized housing that delivers sufficient creepage and spatial distance between contacts, enabling a high-rated voltage (1,000V) and withstanding voltage (3,000V) in a compact size. Is 0.5mm in size and has a pitch of 3.3mm, enabling space-savings and high performance without compromising reliability. Features a three-point contact design (one spring and two embossed contact points) combined with a double-layered spring to increase contact force and prevent vibration from outside, enhancing reliability in high vibration conditions. Also features deep contacts within the housing to eliminate the risk of electric shock during assembly.

Hirose Electric

hirose.com
