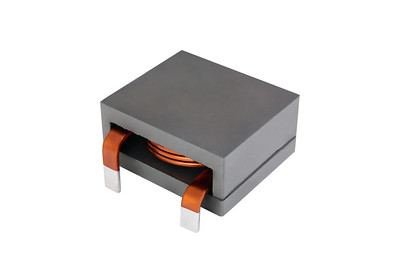

Vishay Intertechnology's Custom Magnetics IHDF-1300AE-1A is a automotive grade IHDF edge-wound, through-hole inductor with a rated current up to 72A and saturation currents up to 230A.

Features ferrite core technology and a 15.4mm maximum profile and operates over a temperature range from -55°C to +155°C with low AC and DC power losses and excellent heat dissipation. Features edge-wound coil construction that provides DCR of 1.1mΩ maximum, and is said to offer 75% higher rated current than competing ferrite-based solutions. Also features an operating voltage up to 500VDC and is AEC-Q200 qualified. Is said to be ideal for DC/DC converters, inverters, and motor and switching noise suppression. Is RoHS-compliant, halogen-free, and Vishay Green.
