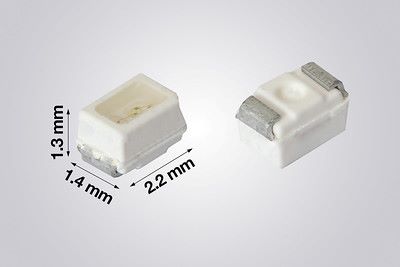

Vishay Intertechnology's VLMB2332T1U2-08 and VLMTG2332ABCA-08 surface-mount LEDs measure 2.2mm by 1.3mm by 1.4mm and feature a luminous intensity of 440mcd and 2300mcd, respectively.

Are designed for applications such as medical light treatment; signal lights for agricultural equipment and energy generation systems; indicators and backlighting for office, entertainment and telecommunications equipment; LCD switches and symbols for general use. VLMTG2332ABCA features a typical wavelength of 525nm at 20mA, and is said to be ideal for heart rate monitoring applications in fitness trackers and other devices that rely on variations in green light absorption. VLMB2332T1U2-08 offers a typical wavelength of 465nm at 20mA and is said to be optimized for smoke detectors that utilize short wavelength blue light for the detection of small particles. Feature a lead-frame embedded in a white thermoplast and offer a ±60° angle of half-intensity, a wide viewing angle of 120° for homogenous illumination and backlighting, and forward voltage of 2.9 V typical. Are RoHS-compliant, halogen-free and Vishay Green, available in 8mm tape, offer an ESD-withstand voltage up to 2kV in accordance with JESD22-A114-B and are compatible with preconditioning according to JEDEC Level 2a, IR reflow soldering according to J-STD-020 and automatic placement equipment.

Vishay Intertechnology

vishay.com
