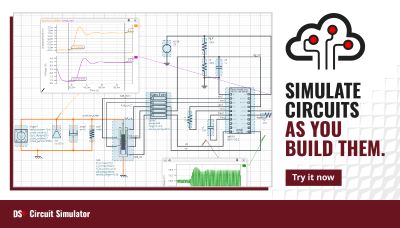

RS' DesignSpark Circuit Simulator is a browser-based tool that provides a comprehensive environment for designing, modeling, simulating, and analyzing electronic and mechatronic circuits and systems.

Includes the ability to quickly sketch electronic schematics on the go, easily create interactive reference designs for testing and understanding applications, and simulate complex circuits online to save time and computing resources. Also features a simulation run-time of up to 60 minutes, private project-collaboration groups, and full support for SPICE and VHDL-AMS models. Also enables users to incorporate single or multiple reference designs into their projects during the design stage and to modify them as needed. Will run in most modern web browsers and on any device, and has full coverage for analog, digital, mixed-signal, and multi-domain systems, including electromechanical and electrothermal simulations.

RS

uk.rs-online.com
