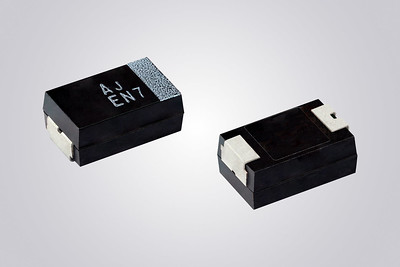

Vishay Intertechnology's T51 automotive grade series of vPolyTan surface-mount polymer tantalum molded chip capacitors are designed to deliver improved performance in high temperature, high humidity operating conditions.

Offered in compact D (EIA 7343-31) and V (EIA 7343-20) case sizes, and feature a wide capacitance range from 6.8µF to 330µF over voltage ratings from 2.5V to 35V and a capacitance tolerance of ± 20%. Provide ultra low ESR from 120mΩ down to 40mΩ at +25°C. Also feature a robust design for harsh environments and offer high temperature operation to +125°C – with voltage derating above +105°C – and a high temperature load time to 2000 hours. Combined with ripple current to 2.37A, are ideal for decoupling, smoothing, and filtering in switch mode and point of load power supplies for automotive ADAS, infotainment, and other in-vehicle electronic systems.

Vishay Intertechnology

www.vishay.com

Vishay-T51
