PathWave Advanced Design System (ADS) 2023 integrated design and simulation software addresses increasing design complexity and higher frequencies for radio frequency (RF) and microwave designs.

Includes enhancements to electromagnetic (EM) simulation for circuit designers. Sstreamlines integration of multi-technology circuit assembly and simulation into enterprise EDA design workflows. Addresses signal complexity, design densification, multi-technology integration and frequencies moving to 60GHz and beyond.

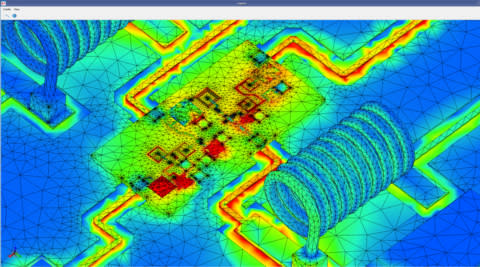

Keysight Pathwave2023

New features include:

  • Automation of EM-circuit co-simulation setup which ensures that analysis is easily accessible by circuit designers without the help of an EM expert or the need for invasive layout editing.
  • Advanced EM solvers and meshing technologies are accessible via a single unified environment with parallelized simulation acceleration through cloud-based, high-performance computing (HPC) that supports fast, high-capacity simulation.
  • Seamless integration with Cadence Virtuoso, Synopsys Custom Compiler and Ansys HFSS facilitates enterprise electronic design automation signoff workflows.

Keysight Technologies

keysight.com
