KW30 1mm-pitch wire-to-board connector is available in two to eight positions.

Miniature single-row connector offers reliability via a two-point contact design, combined with crimp contact deflection prevention. Rib design provides secure fit when mating plug and receptacle. Center lock prevents incomplete mating, mis-insertion and lock damage. Is offered in straight or right-angle interface types; 28, 30 or 32 AWG; and gold plating. Is for home appliances/white goods, medical devices, office equipment, industrial robots, FA controllers and servo motors. Has current rating up to 3.0A, voltage rating of 100V AC/DC and operating temp. range of -55°C to +105°C.

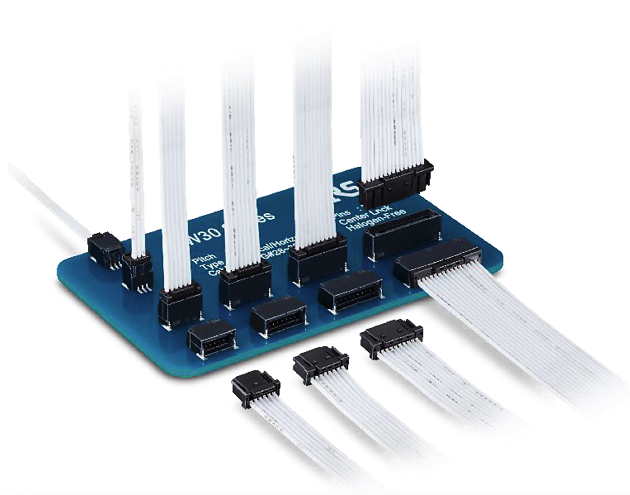

HIrose KW30 series
