C.FL series coaxial connector serves 5G device market.

Measures 2mm x 2mm with 0.92mm mated height. Meets demands for miniaturization and high-performance. Delivers high signal integrity and low insertion loss. Features low reflection characteristics up to 30GHz. Has low voltage standing wave ratios of 1.4 VSWR max.: DC to 15GHz; 1.5 VSWR max.: 15 to 20GHz; 1.6 VSWR max.: 20 to 30GHz. Offers self-alignment range of ±0.15mm in X and Y directions. Tactile click communicates proper mating. Used in portable, consumer and IoT devices.

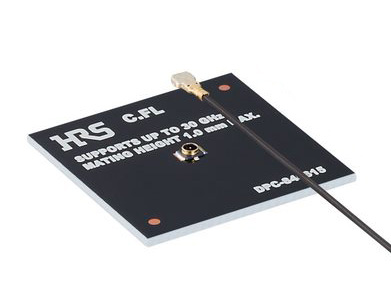

Hirose C FL image

Hirose Electric
hirose.com/us
