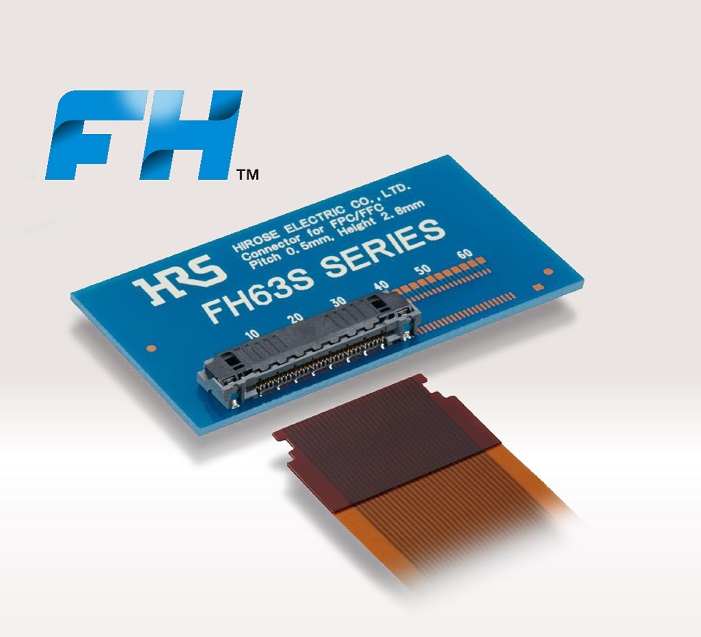

FH63S series shielded flexible printed circuit connector has patented single-action flip lock technology.

Features ground pin to work with shielded FFC for EMI prevention and optimum signal integrity. Is 0.5mm pitch and supports HDMI 1.4a, USB 3.0, Embedded Display Pot 1.3, and V-by-One HS protocols. Combines insertion of 13N with activation of single-action flip lock and retention force of 19.5N. Insertion tab enables users to inspect status of insertion. Has rugged two-point independent contact spring design in addition to single-action flip lock with clear tactile click. Single-action lock eliminates risk of latch damage during assembly. Is used for cameras, laptops, gaming consoles, smart TVs, medical equipment, industrial control systems, servo amplifiers, and automotive applications. Has operating temp. up to 125°C. Is designed for automated pick-and-place assembly processes and offers flux and solder wicking prevention. Has height of 2.8mm and is available in 30-position version that is halogen-free and RoHS compliant.
