The 0.5mm-pitch FH67 series FPC connector with single-action lock satisfies automotive requirements and is commonly used in consumer, gaming, industrial, medical and robotics applications.

Has rugged design, including two-point independent contact springs, and single-action lock with clear tactile click. Has high retention force, high heat resistance, ground pin to work with shielded FFC for EMI prevention. Design offers flux and solder wicking prevention. Has insertion force of 12.5N max; has wide tapers for smooth FPC/FFC insertion. Enables visual confirmation of complete insertion. Is designed for automated pick-and-place assembly processes. Height is 5.2mm; is available in 30-position version that is halogen-free and RoHS-compliant.

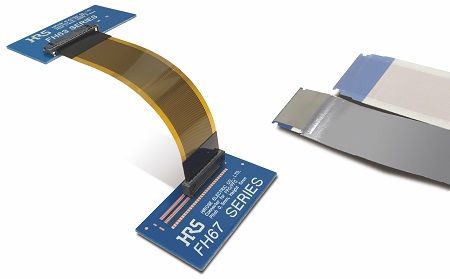

Hirose FH67 Series image

Hirose Electric
hirose.com
