Hirose Offers TF13 Series Connector

Published: 03 March 2020

TF13 series back-flip FPC/FFC connector features 0.4mm pitch, 0.9mm height, and 3mm mounting depth.

Actuator is closed and protected before being mounted to PCB. Combined side-catcher, back-flip design provides FPC retention force up to 3x front-flip connectors. Side catcher prevents misalignment and ensures correct mating. Prevents solder wicking and flux penetration. Is available in positions ranging from 6 to 20. Is designed for volume manufacturing; is compatible for vacuum pickup. Is for portable electronic applications, including consumer, medical and point-of-sale devices. Has single-sided leads, bottom contacts with front-access-style back-flip actuator.

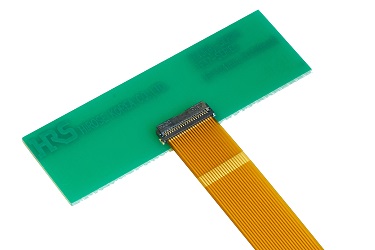

Hirose TF13 Series image

Hirose
hirose.com
