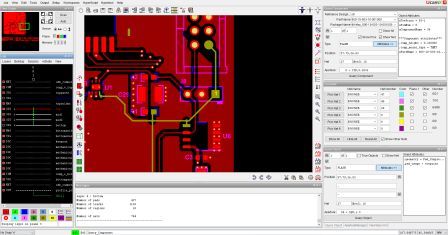

UcamX Assembly Seat identifies assembly data and reads it into job database.

Can be queried, zoomed, collated and analyzed to clarify assembly process requirements. Annular ring and solder pad land sizes and clearances can be analyzed to see how they impact assembly. Allows interrogation of components singly and by type, reference designator information or part name, PIN numbers and reference net names. Components, connections and net designators can be traced to original schematic. Generates BoMs and production documents. Shows component types of specific components. Identifies pin numbers and component orientation. New component layers automatically added after selecting job and layers.
