Posalux Rolls Out Ultraspeed Trio Drill/Milling Station

Published: 18 November 2015

Ultraspeed Trio drilling and milling system is three stations in one machine.

Drill frequency 1,200 strokes/min. with +15 micron accuracy. Each station has two different spindles. Division of spindle types among drilling heads can be chosen:  twice drilling (micro-drilling of <0.1mm and holes up to 6.35mm), two times milling (for FR-4 and IMS) or a combination with drilling and milling. A new interchangeable pressure foot for drilling and milling is on the same spindle. Can switch from drilling insert to milling blank insert. A drilling-milling spindle works in the revolutions range of 10,000 to 140,000 turns per min. Each station has its own spindle axis and table axis.

Posalux, posalux.ch/site/en

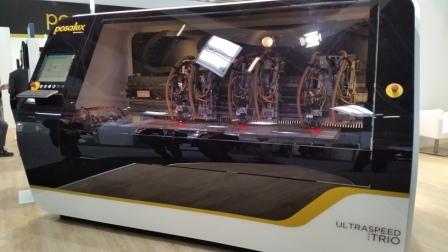

Posalux Trio web
