Near zero-ohm SOT23 Jumper components short out PCB circuitry without the need to redesign or spin new boards.

Available in variety of component outlines and connect (short-out) specific pins together with less than 50 milli-ohms resistance. Pin 1 is shorted to Pin 3. Another configuration shorts Pin 2 to Pin 3. One version has Pin 1, Pin 2 and Pin 3 all shorted together. Withstand 75VDC at 100mA with 350mW power dissipation. Operating temperature ranges from -65⁰C to +150⁰C. Standard and halogen-free versions are available. Other versions with up to 8 shorted pins are available.

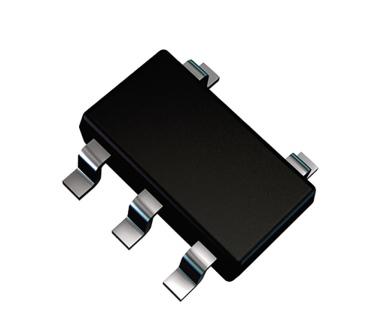

Topline SOT-25 web

TopLine
TopLine.tv
