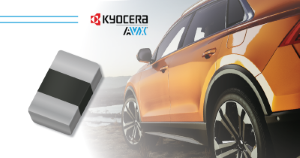

Kyocera AVX's ASPGuard Series MLVs meet IEEE 100BASE-T1 and 1000BASE-T1 testing requirements, and have small, ultralow-profile, surface-mount packages optimized for high-density designs and exhibit high current and energy handling capabilities, bidirectional overvoltage protection, super-fast, sub-nanosecond response times, and multi-strike capabilities.

Also provide EMI/RFI attenuation in their off state, which can reduce or even eliminate the need for additional EMC capacitors, and offer lower insertion loss, lower leakage current, and high reliability. Are also qualified to OPEN (One-Pair Ethernet) Alliance standards for automotive Ethernet applications and AEC-Q200.

Ideal applications include automotive Ethernet networks, IoT devices, industrial automation and control systems, robotics, RF and optical circuits, sensors, high-speed data lines, antennas, radar, Bluetooth devices, and other capacitance-sensitive, high-density applications in the automotive, industrial, and consumer electronics markets.

Available in ultraminiature 0402 and 0603 case sizes with maximum respective heights of 0.5±0.10mm and 0.80±0.15mm, and are rated for working voltages extending from 18–70VDC, capacitance values ranging from just 1.5–4.7pF, energy transients spanning 0.02–0.04J, 1–3A of peak current, and operating temperatures as low as -55°C and as high as +150°C. Also delivers up to 25kV of electrostatic discharge (ESD) protection per IEC 61000-4-2 and meets 48VDC jump start requirements.

Kyocera AVX

www.kyocera-avx.com
